SF-FS662 SF-FS800 SF-FS1000 SF-FS1250 SF-FS1500 SF-FS2000
- •Supports configurable underfloor airflow
- •Panel finish can coordinate with surrounding access-floor panels
- •Optional dampers help balance air volume by zone

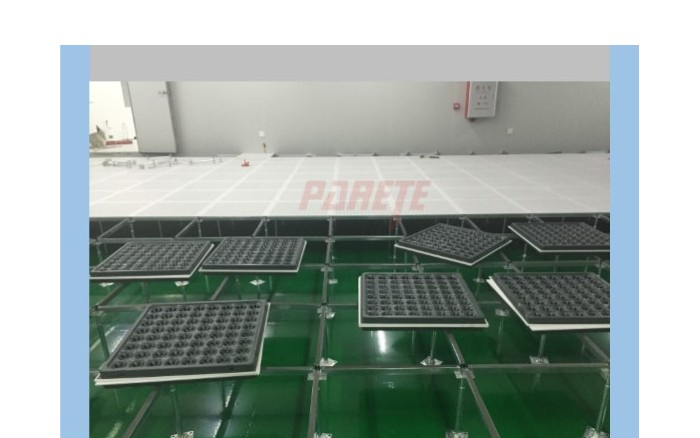

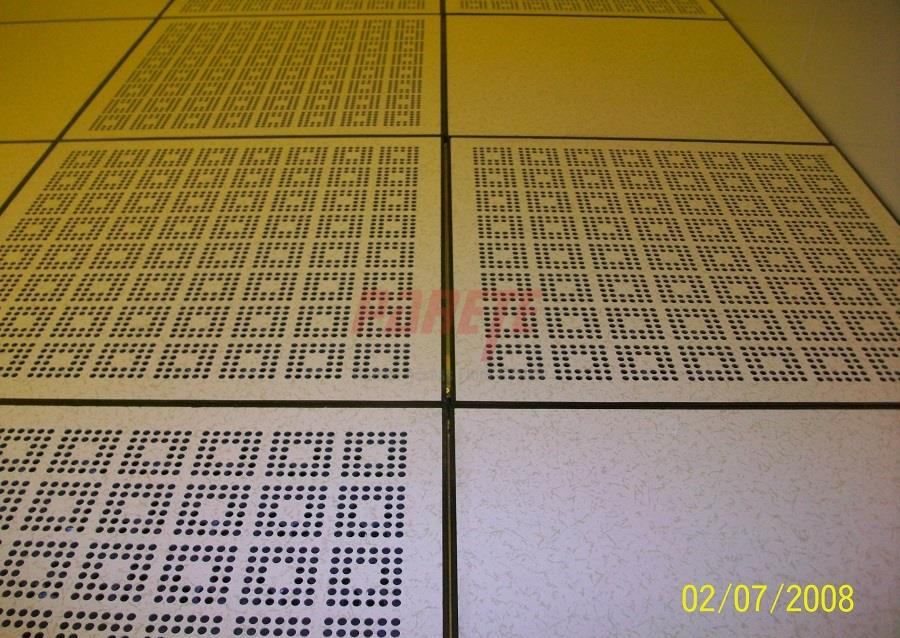

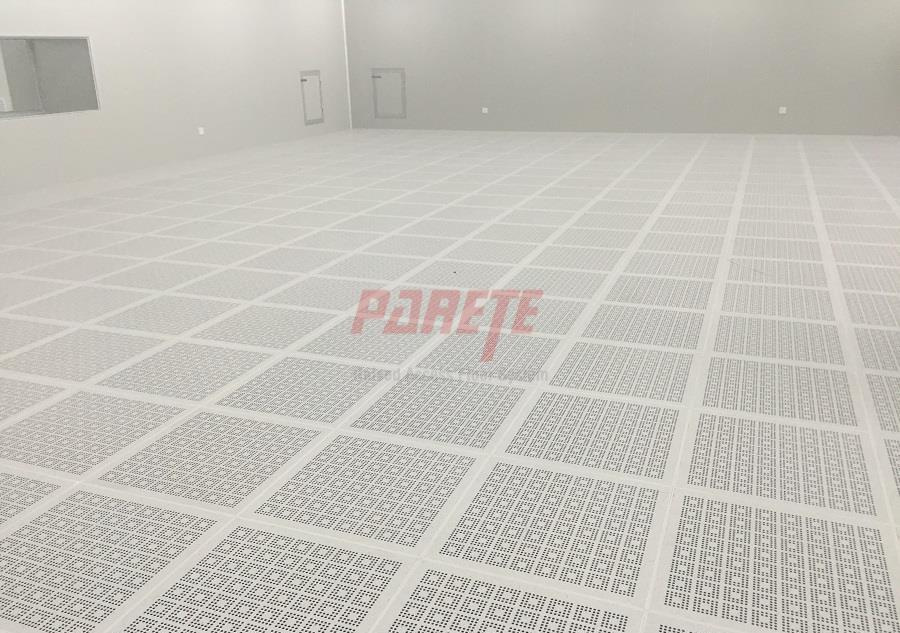

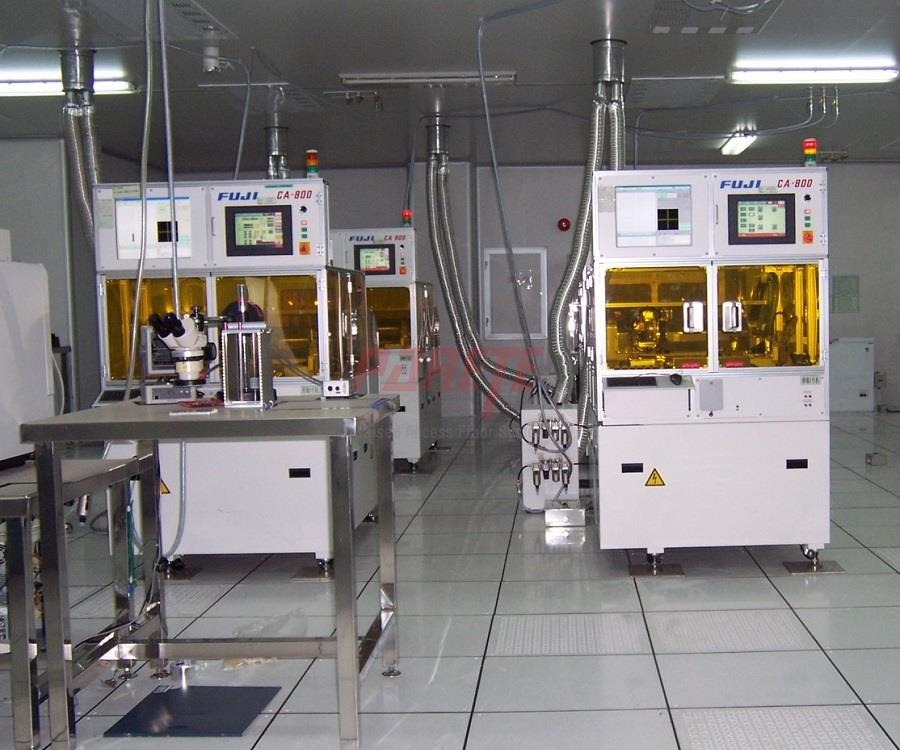

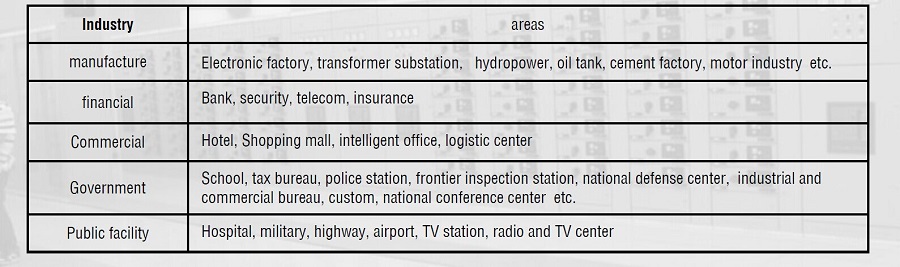

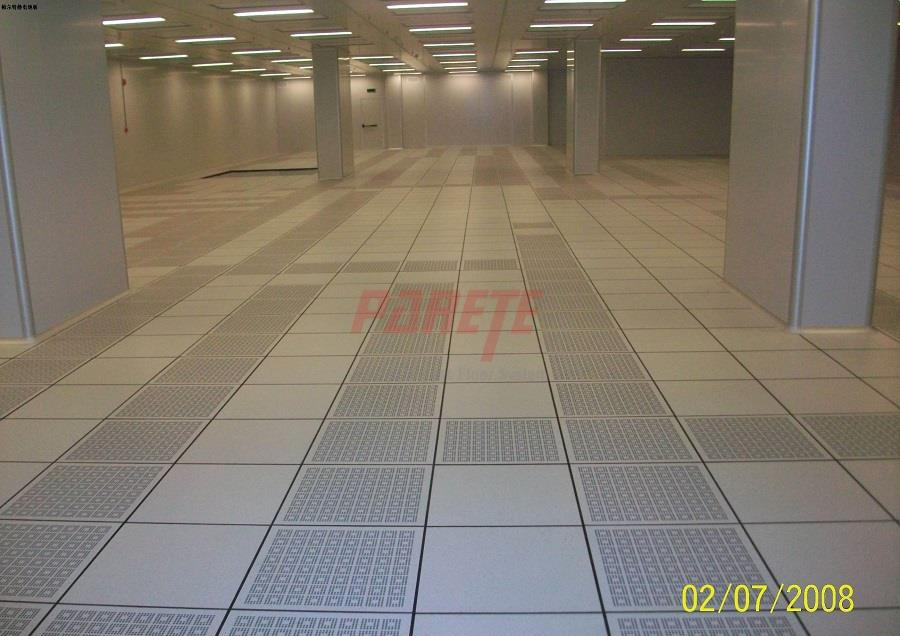

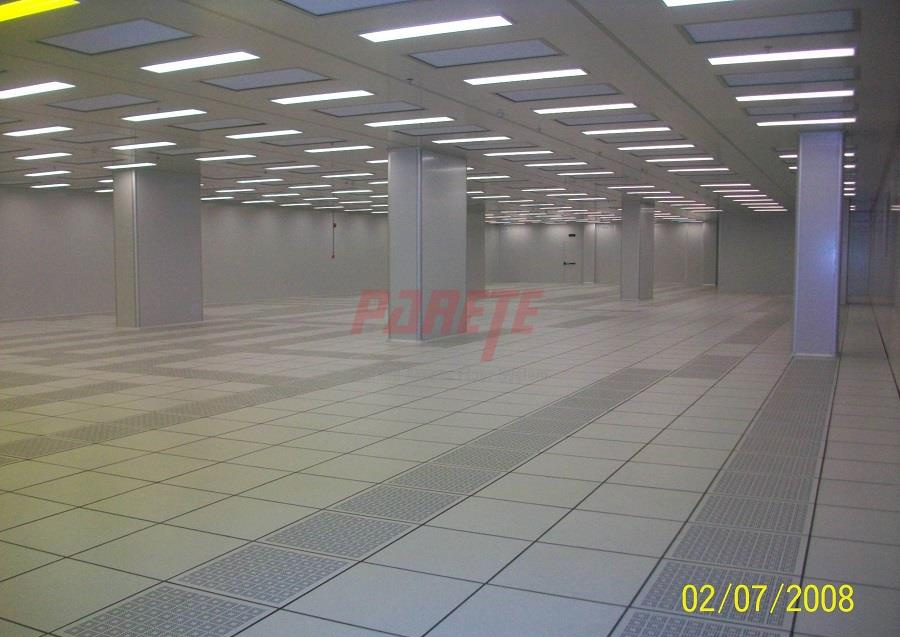

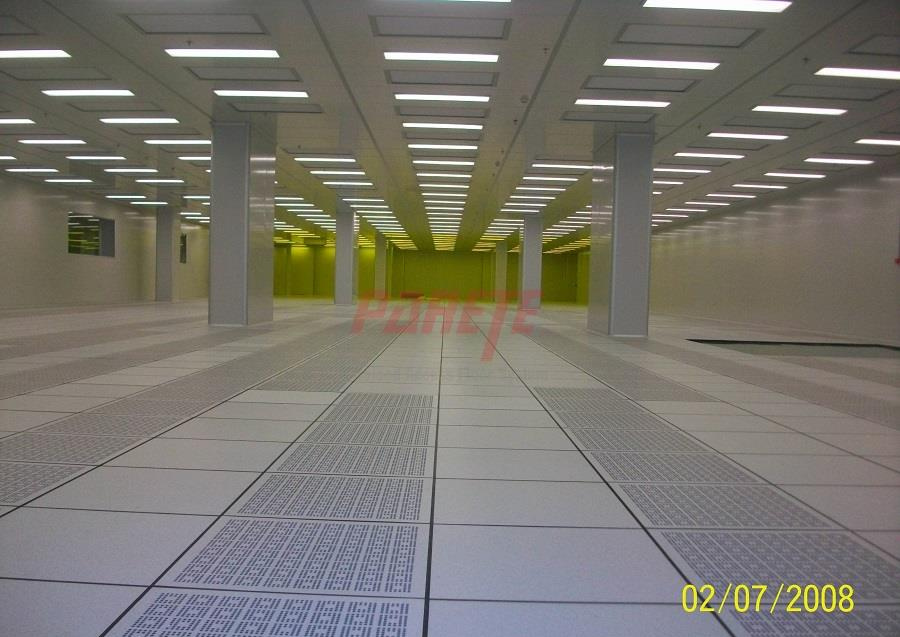

- •Useful for cooling equipment rooms and clean technical spaces

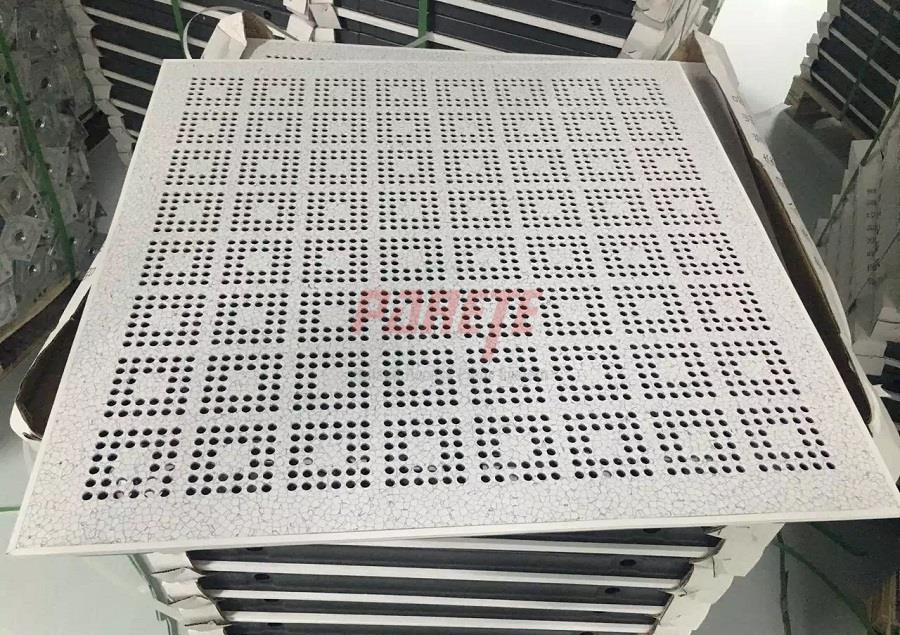

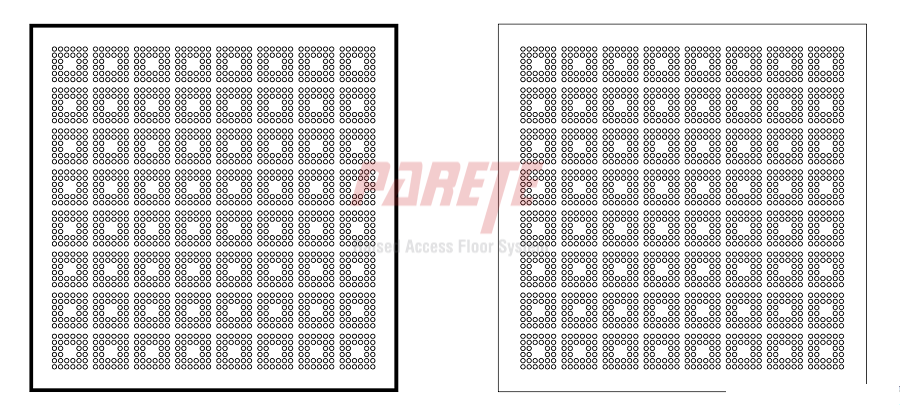

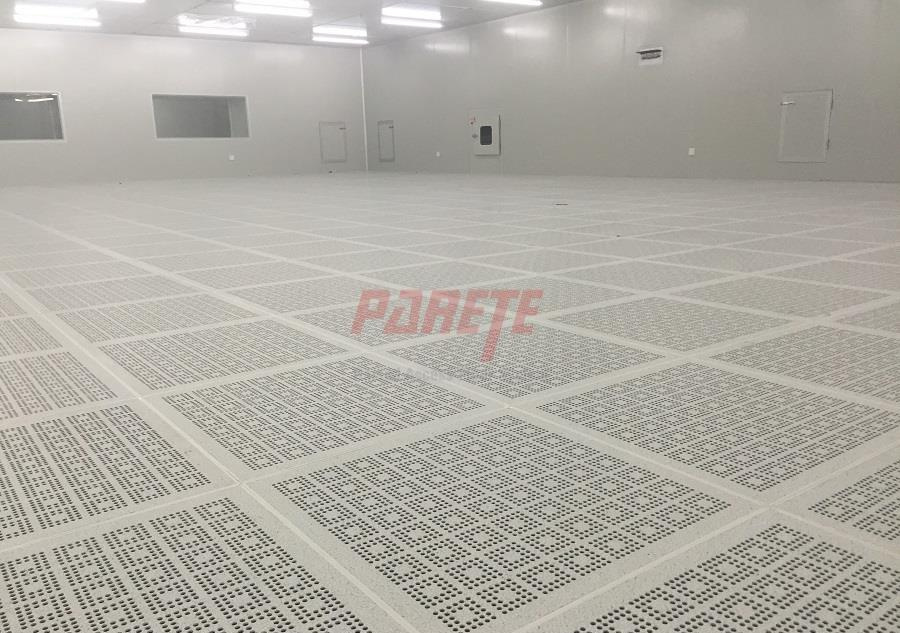

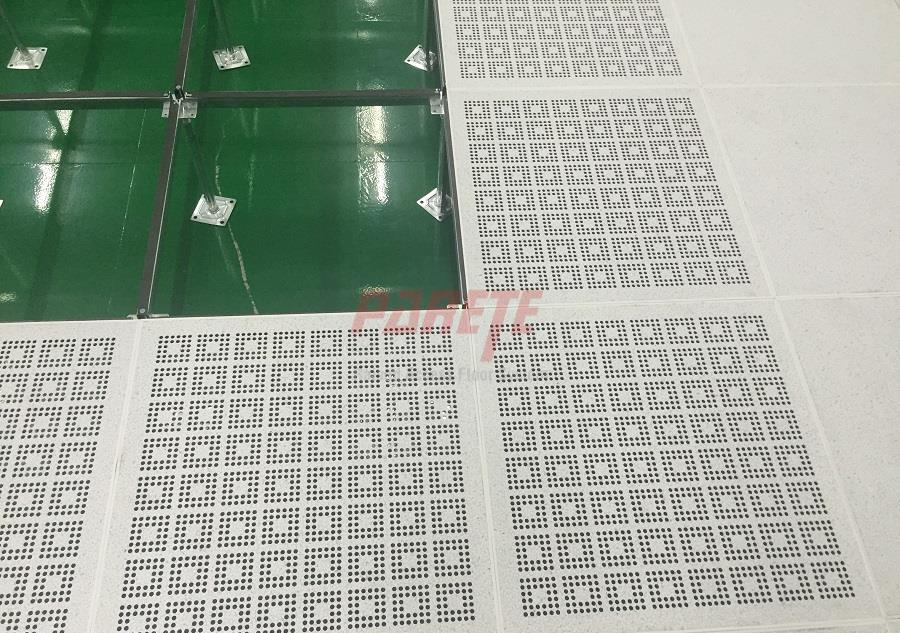

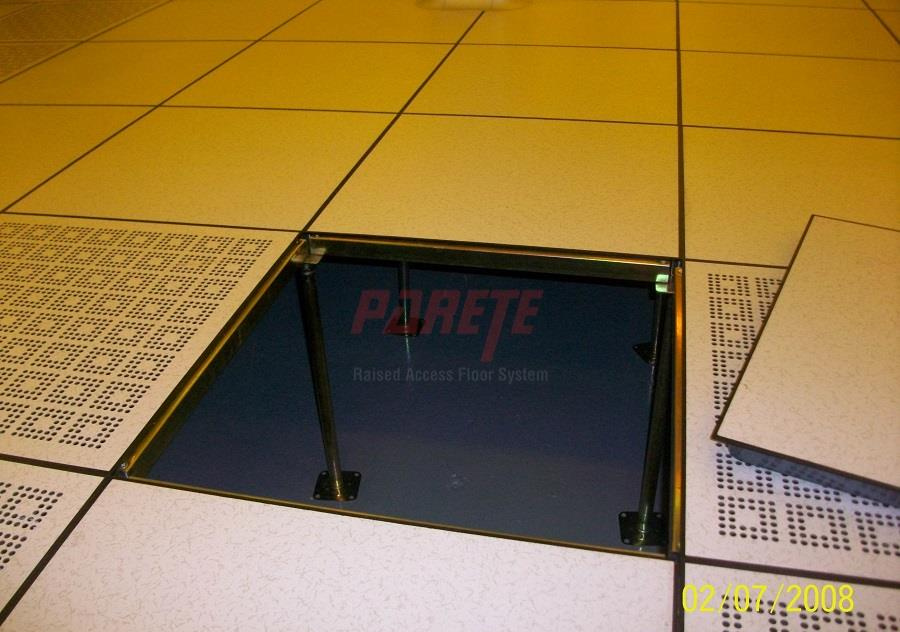

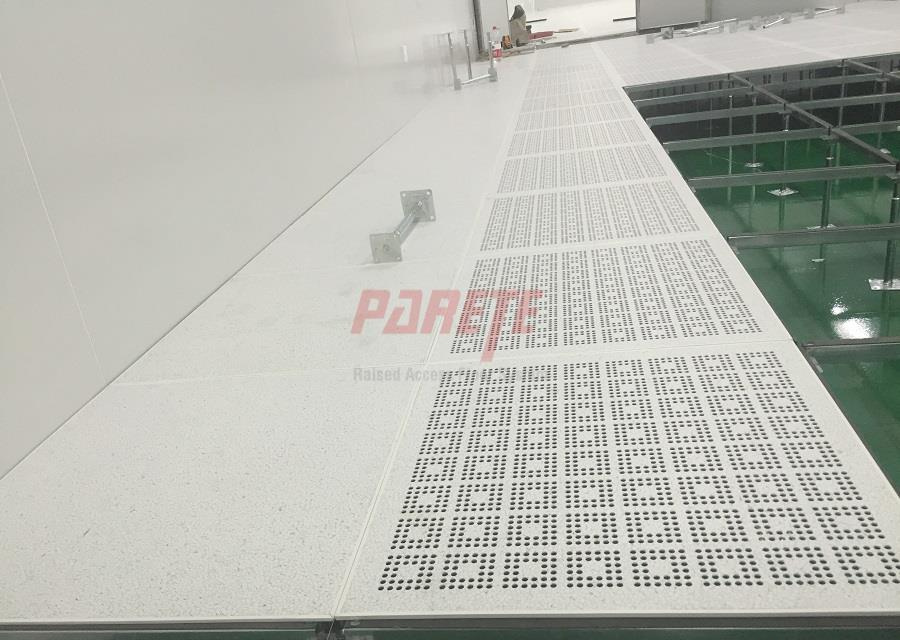

| Panel construction | Perforated steel access-floor panel |
|---|---|
| Module size | 600 x 600 mm |
| Nominal open area | 21% nominal open area |
| Material | Steel |

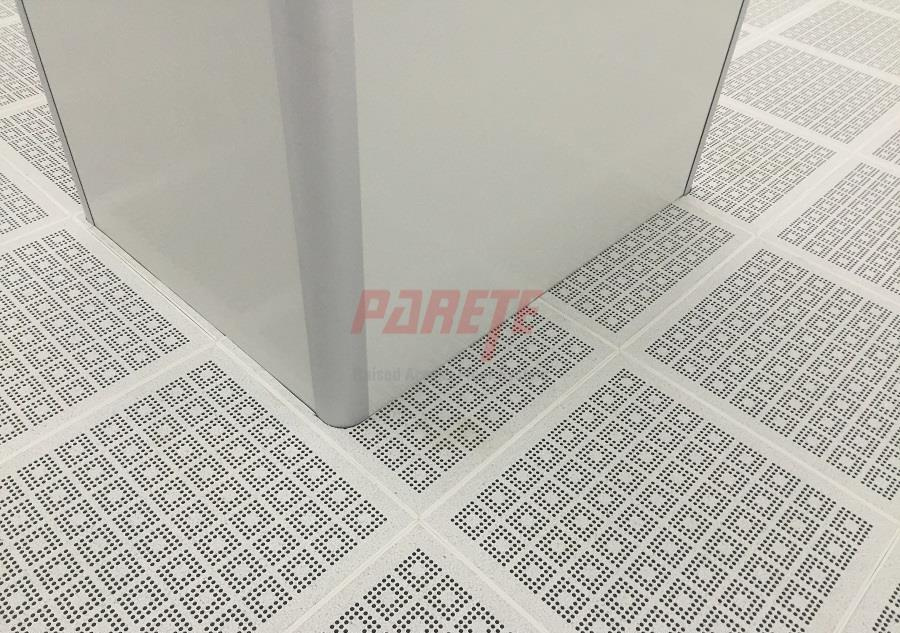

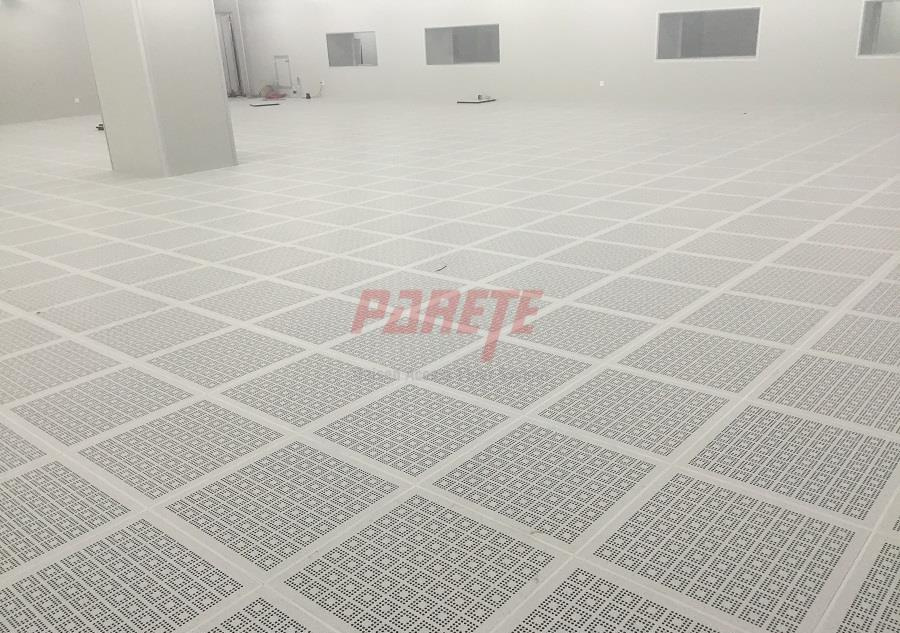

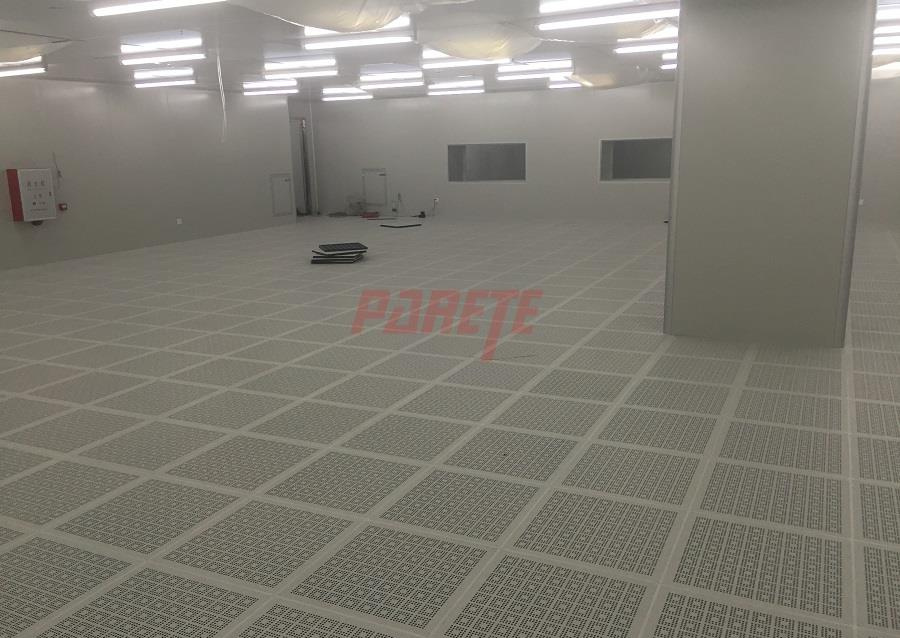

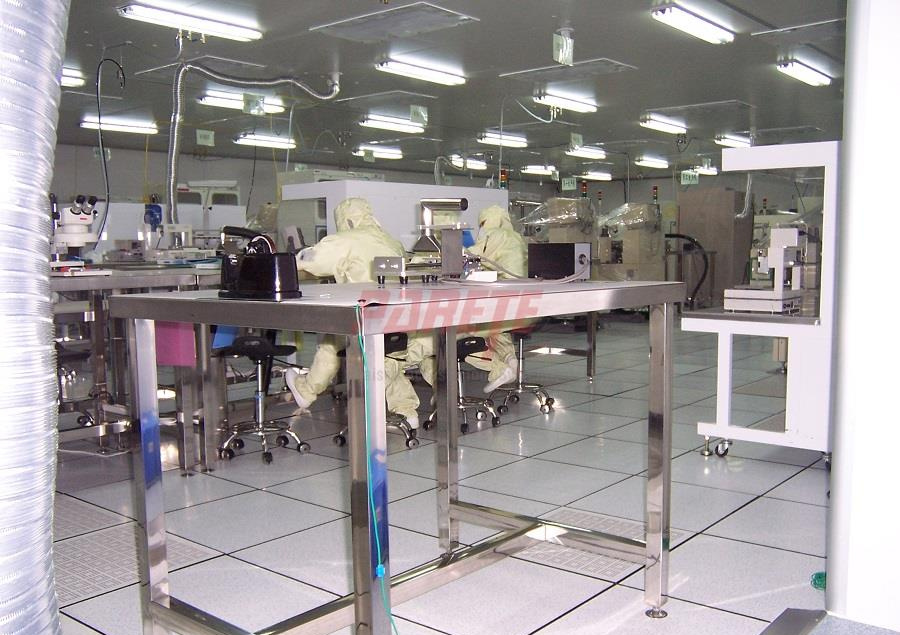

| Surface finish | Conductive PVC/vinyl or anti-static HPL to match adjacent panels |

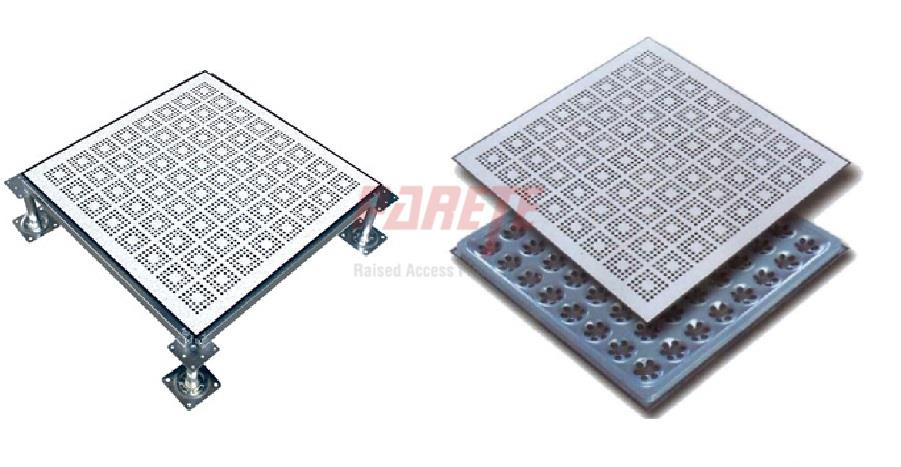

| Airflow control | Optional damper for adjustable air volume |
| Panel type | Module | Ventilation range | Damper range | Typical use |
|---|---|---|---|---|
| Steel perforated | 600 x 600 mm | 20%-75% | 0%-40% / 0%-90% | Data rooms and equipment cooling |
| Aluminum perforated | 600 x 600 mm | 17%-43% | 0% to panel rate | Clean rooms and precision spaces |
| Model | Panel size | Uniform load | Concentrated load | Rolling load | Ultimate load |
|---|---|---|---|---|---|
| FS662 | 600 x 600 x 33 mm | 12.50 kN/m2 | 2.95 kN | 2.21 / 1.55 kN | 8.85 kN |
| FS800 | 600 x 600 x 33 mm | 16.10 kN/m2 | 3.55 kN | 2.95 / 2.36 kN | 11.25 kN |
| FS1000 | 600 x 600 x 33 mm | 23.00 kN/m2 | 4.45 kN | 3.56 / 2.67 kN | 13.35 kN |
| FS1250 | 600 x 600 x 33 mm | 33.00 kN/m2 | 5.56 kN | 4.45 / 3.56 kN | 16.68 kN |
| FS1500 | 600 x 600 x 35 mm | 39.32 kN/m2 | 6.67 kN | 5.56 / 4.45 kN | 20.00 kN |
| FS2000 | 600 x 600 x 35 mm | 58.00 kN/m2 | 9.00 kN | 6.70 / 5.60 kN | 31.13 kN |
