SF-FS662 SF-FS800 SF-FS1000 SF-FS1250
- •Dense calcium-sulphate core for acoustic comfort and dimensional stability
- •High rolling-load capacity for office and technical environments
- •Non-combustible mineral core with strong fire performance
- •Multiple factory-bonded surface finishes available

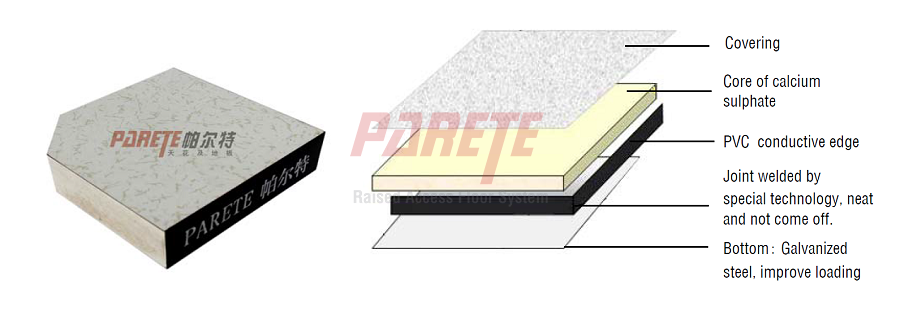

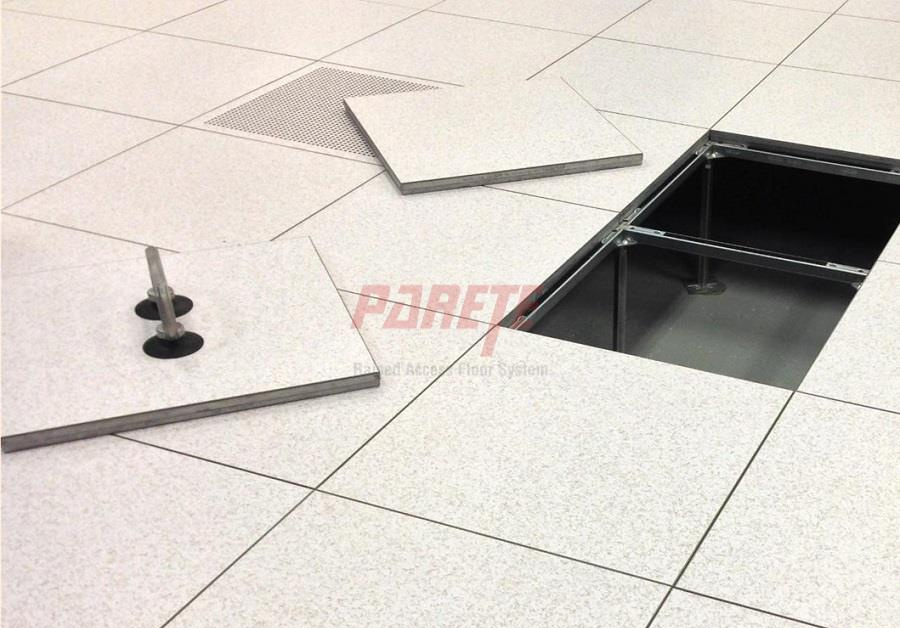

| Panel construction | High-density calcium sulphate core with bottom galvanized steel sheet or aluminum foil |
|---|---|
| Module size | 600 x 600 mm |
| Panel thickness | 30-40 mm project-dependent |
| Surface finish | Ceramic tile finish |
| Edge protection | PVC edge trim on four sides |

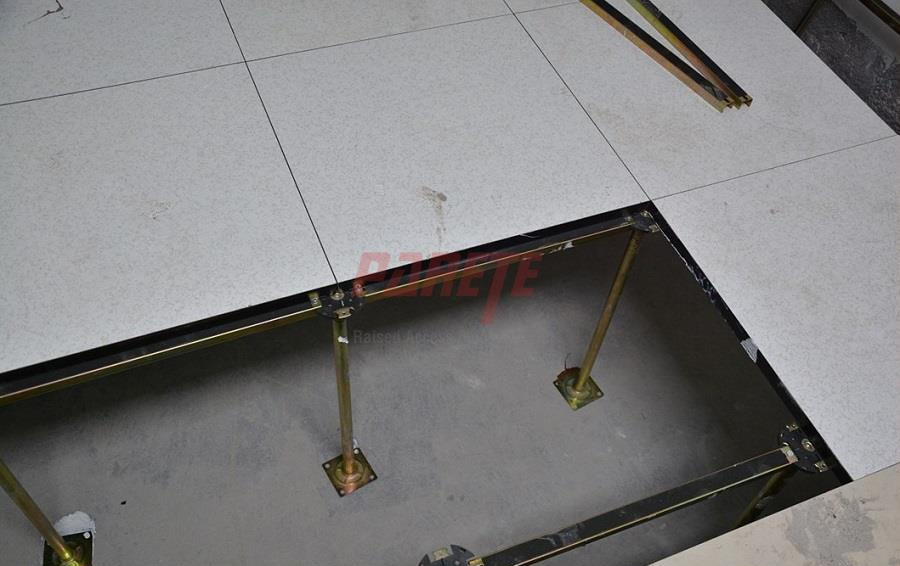

| Understructure | Pedestals and stringers; finished floor height by project drawings |
| Performance focus | High rolling load capacity, acoustic performance and non-combustible core |
| Model | Panel size | Uniform load | Concentrated load | Rolling load | Ultimate load |
|---|---|---|---|---|---|
| FS662 | 600 x 600 x 33 mm | 12.50 kN/m2 | 2.95 kN | 2.21 / 1.55 kN | 8.85 kN |
| FS800 | 600 x 600 x 33 mm | 16.10 kN/m2 | 3.55 kN | 2.95 / 2.36 kN | 11.25 kN |
| FS1000 | 600 x 600 x 33 mm | 23.00 kN/m2 | 4.45 kN | 3.56 / 2.67 kN | 13.35 kN |
| FS1250 | 600 x 600 x 33 mm | 33.00 kN/m2 | 5.56 kN | 4.45 / 3.56 kN | 16.68 kN |
