SF-FS662 SF-FS800 SF-FS1000 SF-FS1250 SF-FS1500 SF-FS2000

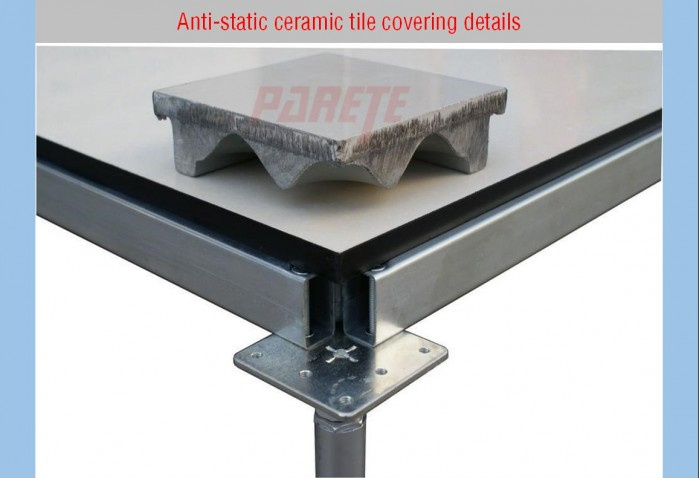

- •Steel shell with cementitious infill for rigidity and load capacity
- •Anti-static finish options for ESD control

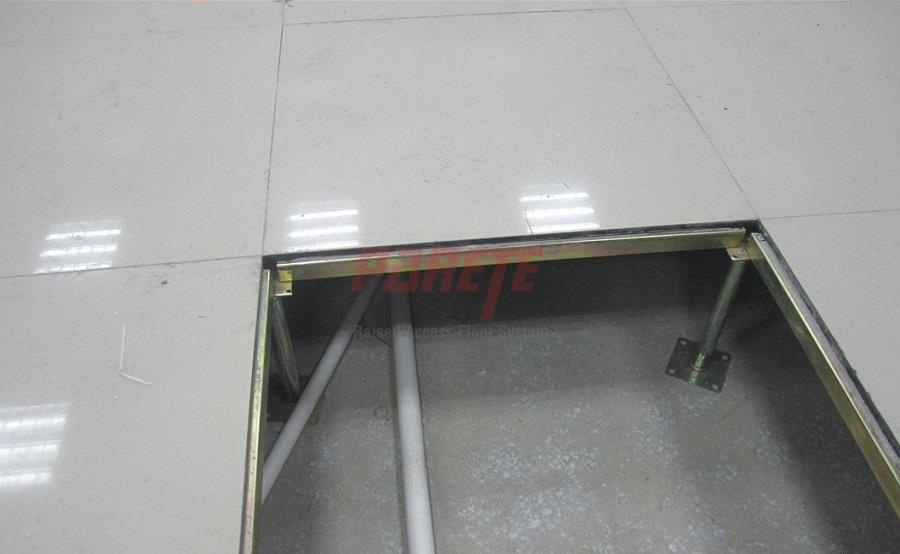

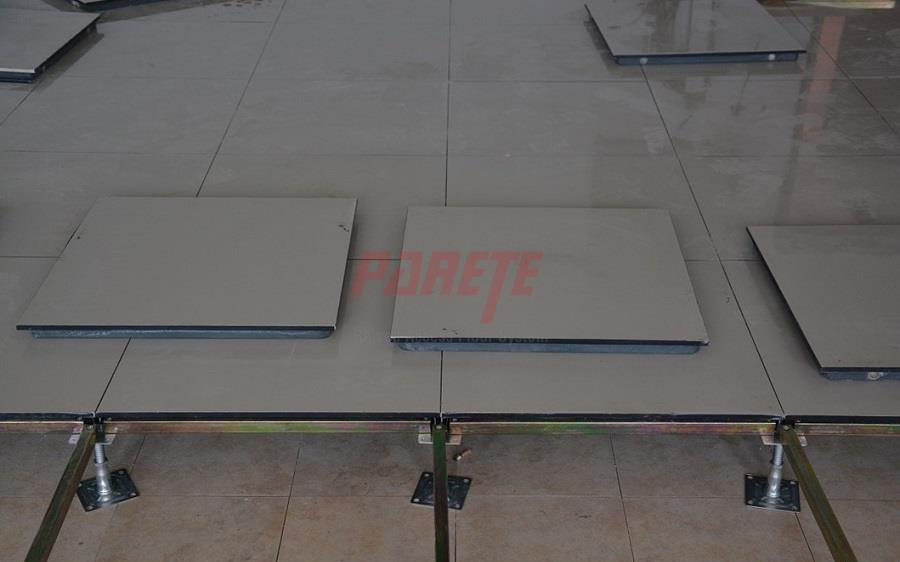

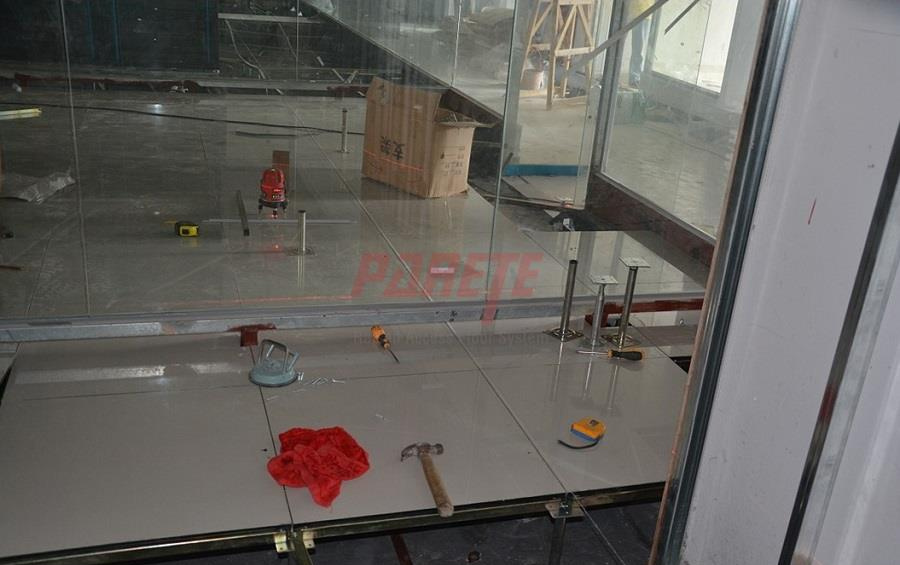

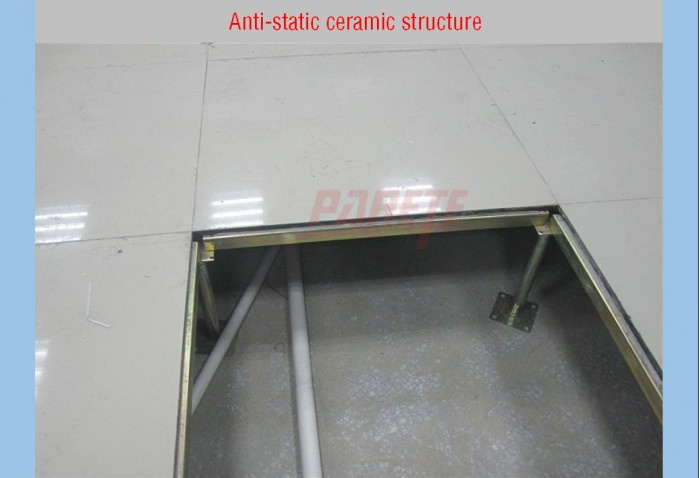

- •Stringer understructure supports stable installation and maintenance access

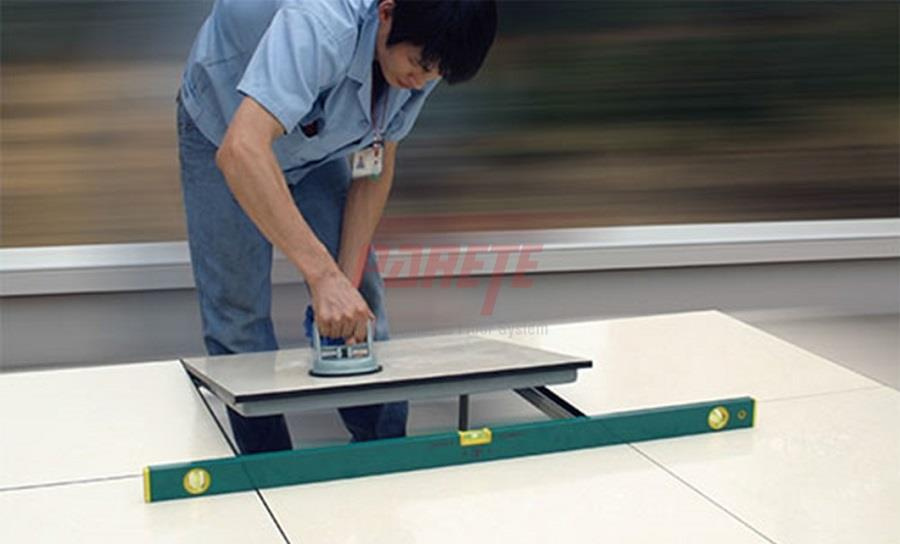

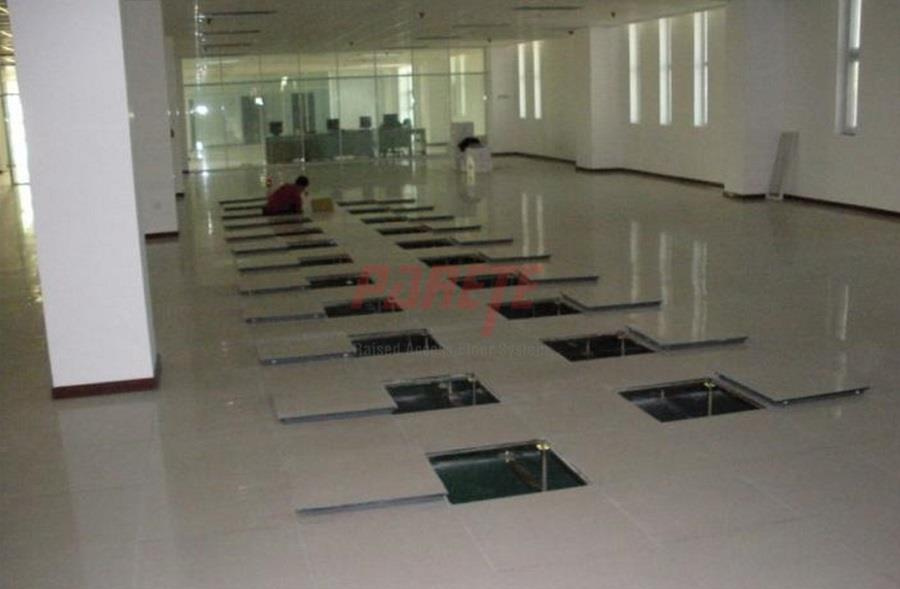

- •Suitable for cable-heavy rooms where panels need to be lifted and reconfigured

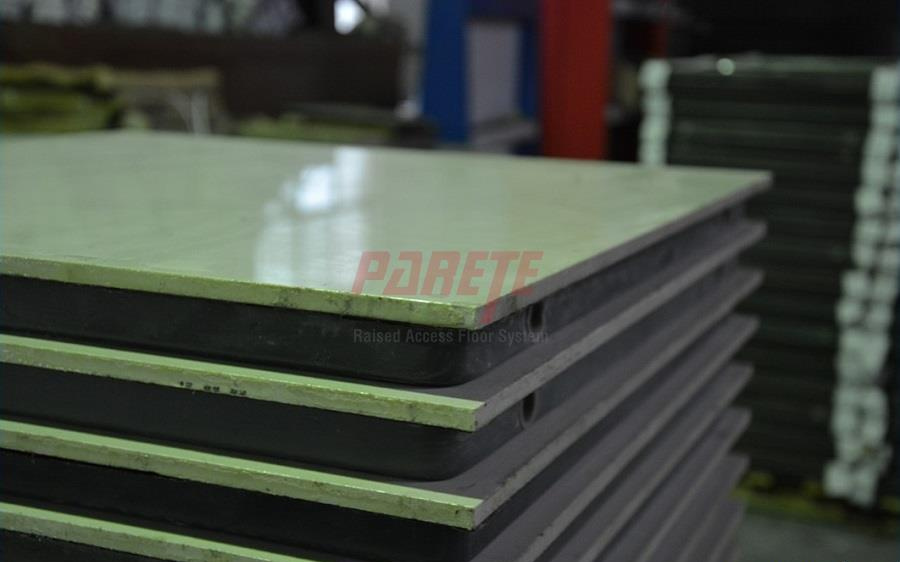

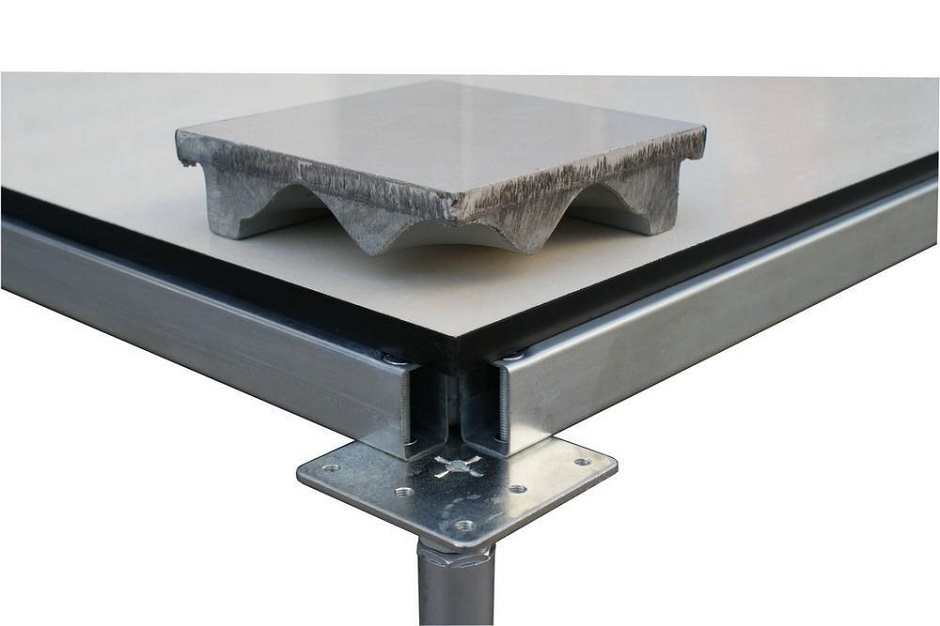

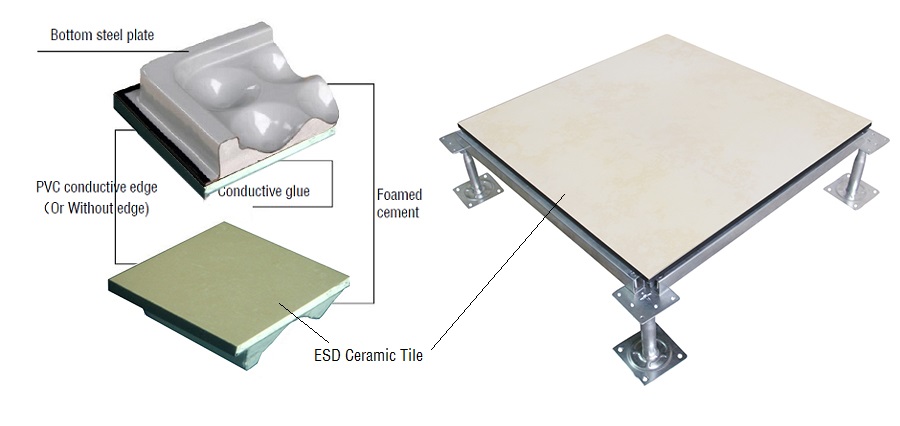

| Panel construction | Welded steel shell filled with cementitious core |
|---|---|
| Module size | 600 x 600 mm |
| Panel thickness | 35 mm |

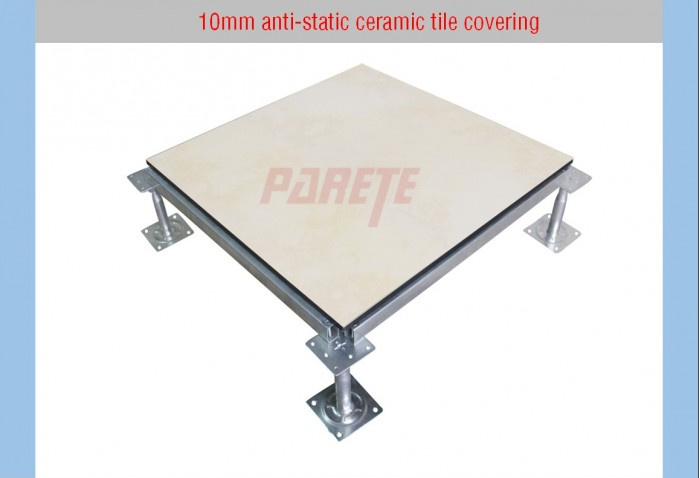

| Surface finish | Anti-static ceramic tile |
| Materials | Steel, cementitious infill, conductive edge trim |

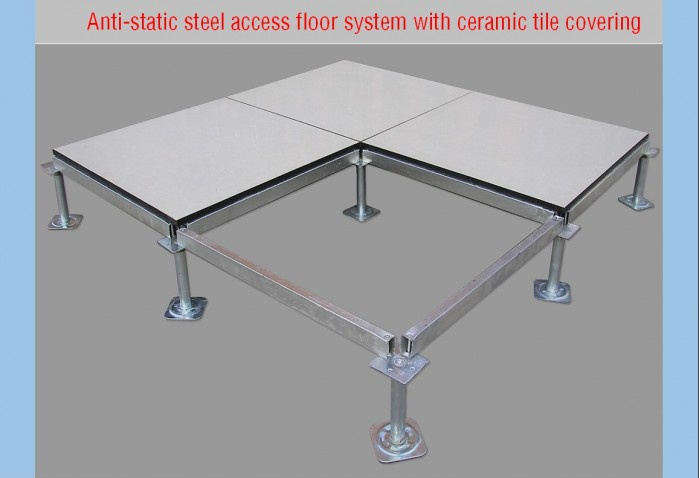

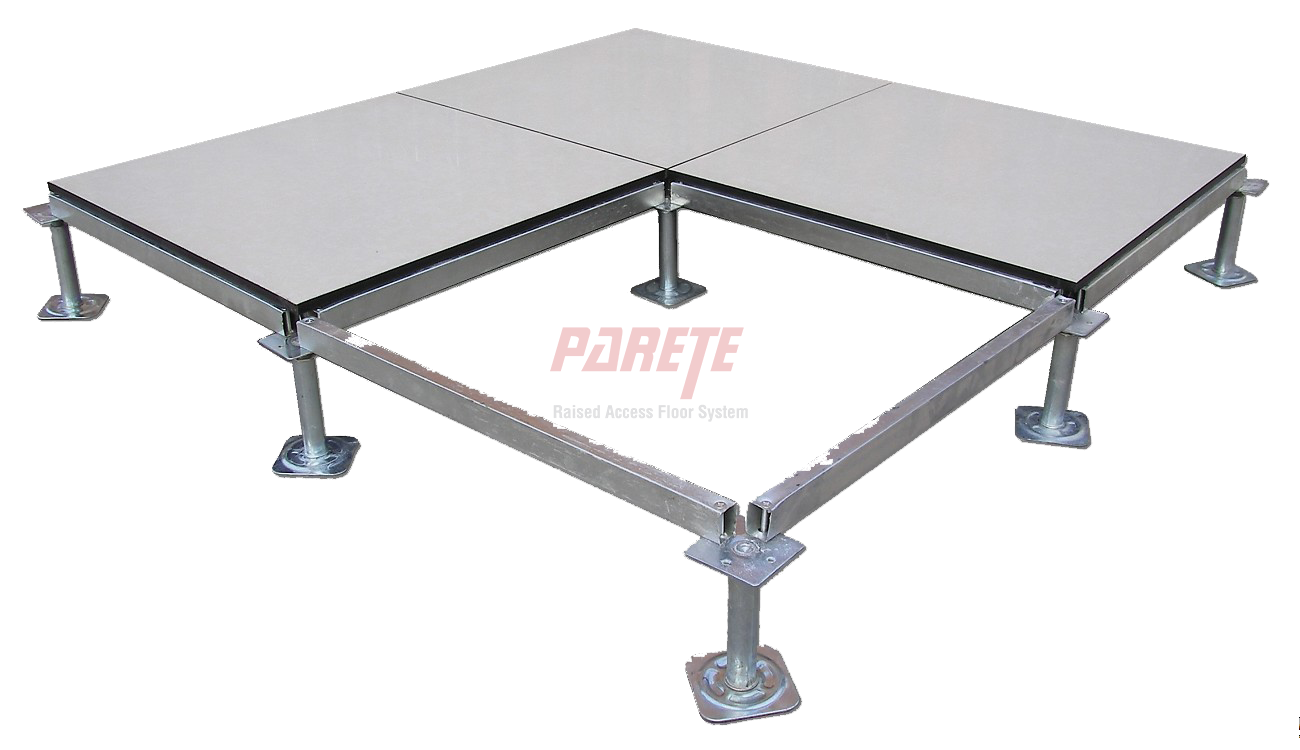

| Understructure | Pedestals and stringers; finished floor height by project drawings |

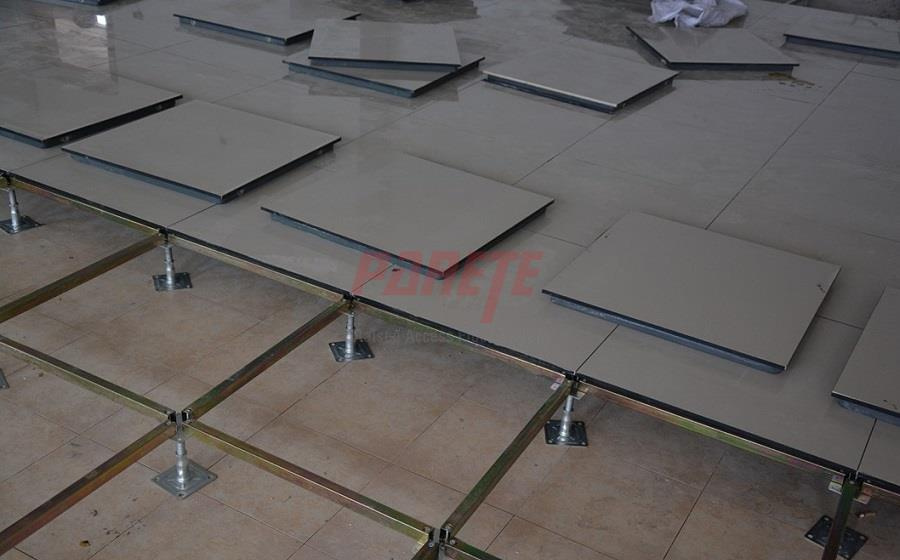

| Installation | Stringer system with grounded accessories where required |
| Model | Panel size | Uniform load | Concentrated load | Rolling load | Ultimate load |
|---|---|---|---|---|---|
| FS662 | 600 x 600 x 33 mm | 12.50 kN/m2 | 2.95 kN | 2.21 / 1.55 kN | 8.85 kN |
| FS800 | 600 x 600 x 33 mm | 16.10 kN/m2 | 3.55 kN | 2.95 / 2.36 kN | 11.25 kN |
| FS1000 | 600 x 600 x 33 mm | 23.00 kN/m2 | 4.45 kN | 3.56 / 2.67 kN | 13.35 kN |
| FS1250 | 600 x 600 x 33 mm | 33.00 kN/m2 | 5.56 kN | 4.45 / 3.56 kN | 16.68 kN |
| FS1500 | 600 x 600 x 35 mm | 39.32 kN/m2 | 6.67 kN | 5.56 / 4.45 kN | 20.00 kN |
| FS2000 | 600 x 600 x 35 mm | 58.00 kN/m2 | 9.00 kN | 6.70 / 5.60 kN | 31.13 kN |
