SF-FS662 SF-FS800 SF-FS1000 SF-FS1250 SF-FS1500 SF-FS2000 SF-FS3000

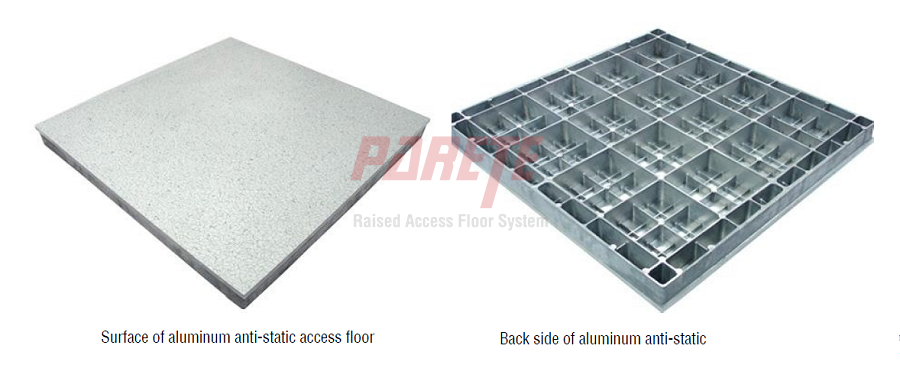

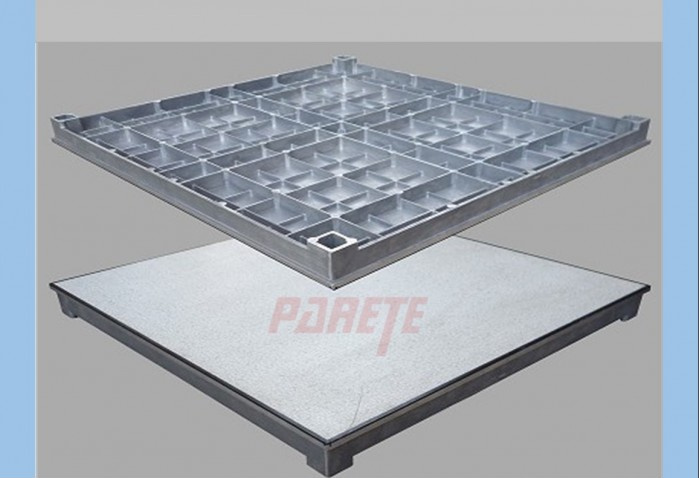

- •Die-cast aluminum body with high dimensional accuracy
- •Lightweight panel with strong load performance
- •Non-ferrous construction for sensitive technical environments

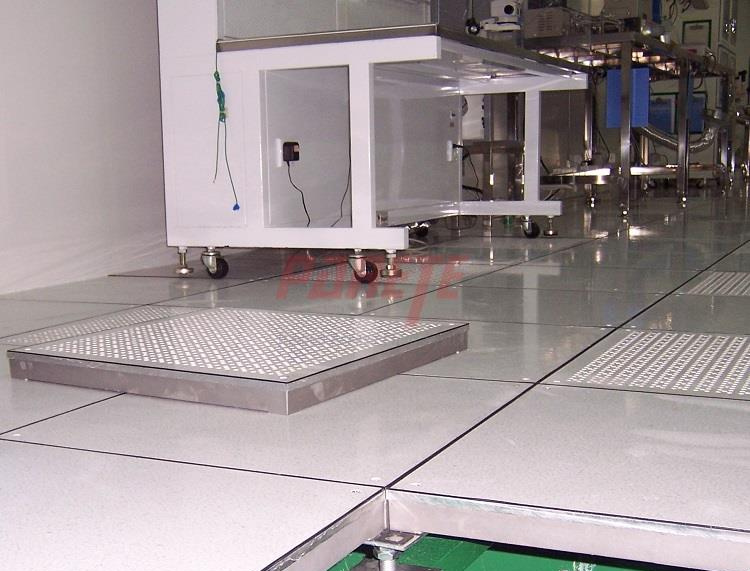

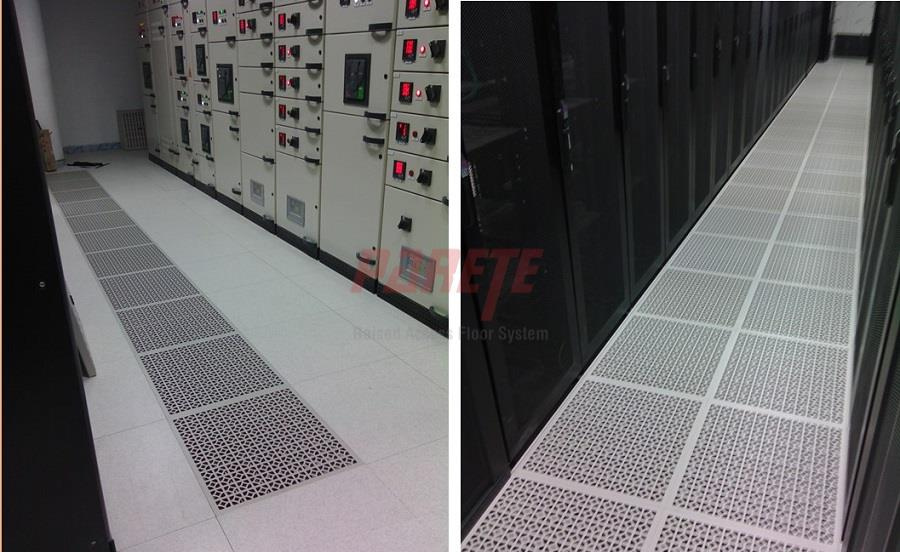

- •Can coordinate with perforated panels for airflow zones

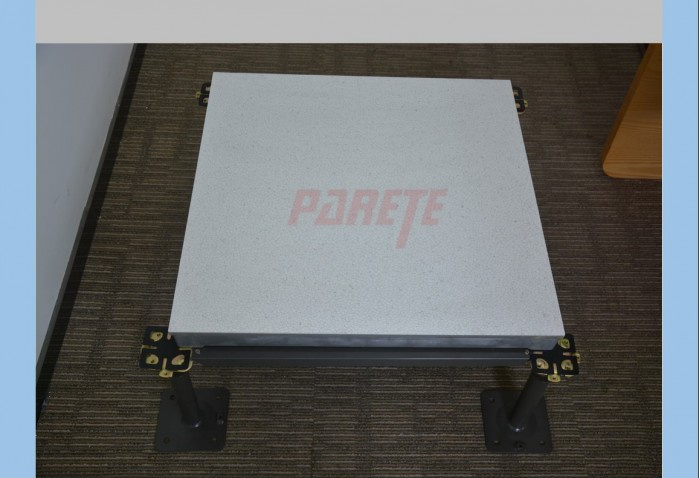

| Panel construction | Solid die-cast aluminum access-floor panel |
|---|---|
| Module size | 600 x 600 mm |
| Material | Die-cast aluminum alloy |
| Surface finish | Conductive PVC/vinyl, anti-static HPL or project-selected finish |
| Ventilation | Not applicable |
| Compatibility | Designed to interchange with matching solid or perforated panels |
| Model | Panel size | Uniform load | Concentrated load | Rolling load | Ultimate load |
|---|---|---|---|---|---|
| FS662 | 600 x 600 x 33 mm | 12.50 kN/m2 | 2.95 kN | 2.21 / 1.55 kN | 8.85 kN |
| FS800 | 600 x 600 x 33 mm | 16.10 kN/m2 | 3.55 kN | 2.95 / 2.36 kN | 11.25 kN |
| FS1000 | 600 x 600 x 33 mm | 23.00 kN/m2 | 4.45 kN | 3.56 / 2.67 kN | 13.35 kN |
| FS1250 | 600 x 600 x 33 mm | 33.00 kN/m2 | 5.56 kN | 4.45 / 3.56 kN | 16.68 kN |
| FS1500 | 600 x 600 x 35 mm | 39.32 kN/m2 | 6.67 kN | 5.56 / 4.45 kN | 20.00 kN |
| FS2000 | 600 x 600 x 35 mm | 58.00 kN/m2 | 9.00 kN | 6.70 / 5.60 kN | 31.13 kN |
| FS3000 | 600 x 600 x 35 mm | 58.3 kN/m2 | 13.3 kN | 11.1 / 8.9 kN | 39.9 kN |
