SF-C4-FS662 SF-C4-FS800 SF-C4-FS1000 SF-C4-FS1250 SF-C4-FS1500 SF-C4-FS2000
- •Dense calcium-sulphate core for acoustic comfort and dimensional stability
- •High rolling-load capacity for office and technical environments
- •Non-combustible mineral core with strong fire performance
- •Multiple factory-bonded surface finishes available
| Panel construction | High-density calcium sulphate core with bottom galvanized steel sheet or aluminum foil |
|---|---|
| Module size | 600 x 600 mm |
| Panel thickness | 30-40 mm project-dependent |

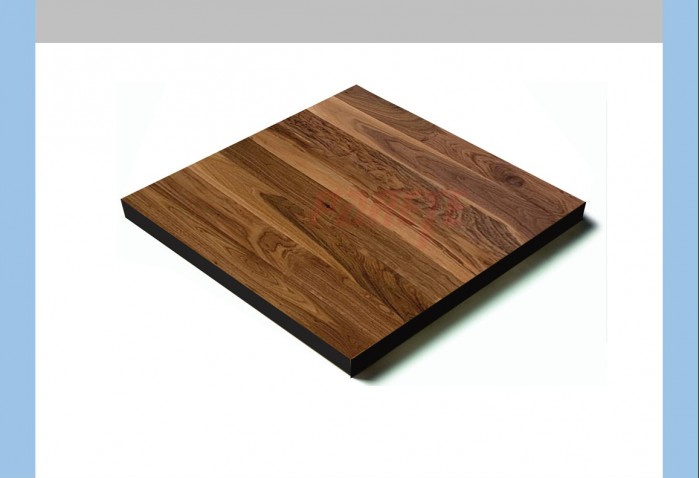

| Surface finish | Factory-bonded wood parquet finish |
| Edge protection | PVC edge trim on four sides |

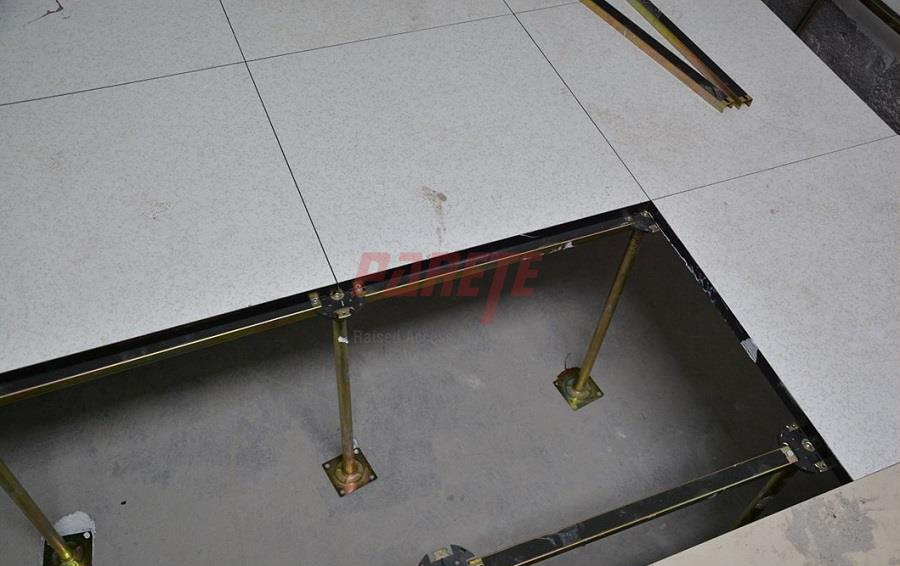

| Understructure | Pedestals and stringers; finished floor height by project drawings |
| Performance focus | High rolling load capacity, acoustic performance and non-combustible core |
| Model | Panel size | Uniform load | Concentrated load | Rolling load | Ultimate load |
|---|---|---|---|---|---|
| SF-C4-FS662 | 600 x 600 x 33 mm | 12.50 kN/m2 | 2.95 kN | 2.26 kN | 8.85 kN |
| SF-C4-FS800 | 600 x 600 x 33 mm | 16.50 kN/m2 | 3.55 kN | 2.95 kN | 10.65 kN |
| SF-C4-FS1000 | 600 x 600 x 33 mm | 23.00 kN/m2 | 4.45 kN | 3.56 kN | 13.35 kN |
| SF-C4-FS1250 | 600 x 600 x 34 mm | 33.00 kN/m2 | 5.56 kN | 4.45 kN | 16.68 kN |
| SF-C4-FS1500 | 600 x 600 x 35 mm | 39.32 kN/m2 | 6.67 kN | 5.56 kN | 20.00 kN |
| SF-C4-FS2000 | 600 x 600 x 35 mm | 58.00 kN/m2 | 9.00 kN | 8.00 kN | 31.13 kN |
